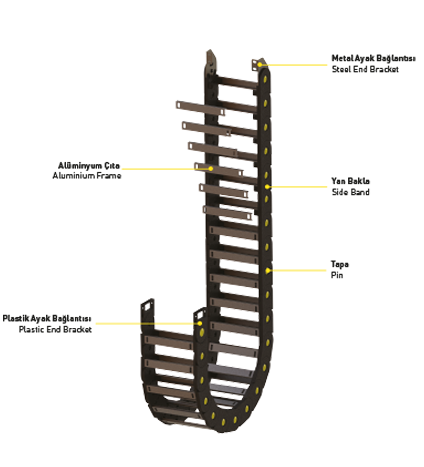

Plastic Medium Series CK25 AC?K
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machineries
Speed
8 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
| MODEL | Inner Height (mm) |
Inner Width (mm) |
Outer Height (mm) |
Outer Width (mm) |
Weight Kg/Mt |

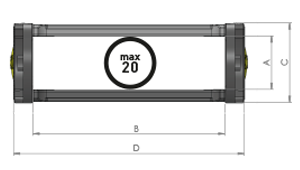

| CK25 A 040 R | 25 | 40 | 42 | 62 | 1,26 |
| CK25 A 050 R | 50 | 72 | 1,36 | ||
| CK25 A 060 R | 60 | 82 | 1,46 | ||
| CK25 A 080 R | 80 | 102 | 1,65 | ||
| CK25 A 100 R | 100 | 122 | 1,86 |
| R Bending Radius | 40 | 75 | 100 | 125 |
| H (mm) | 42 | 42 | 42 | 42 |
| X (mm) | 112 | 192 | 242 | 292 |
| Y (mm) | 126 | 236 | 314 | 393 |

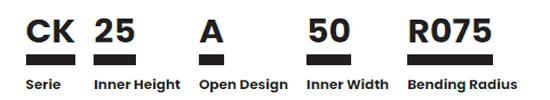

Order

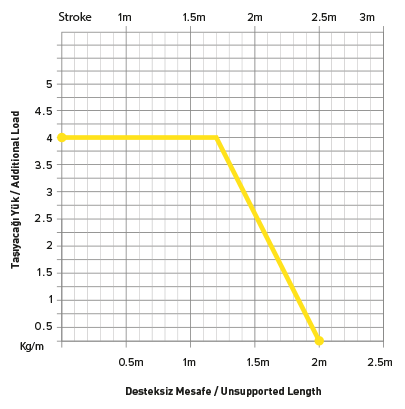

Load Diagram

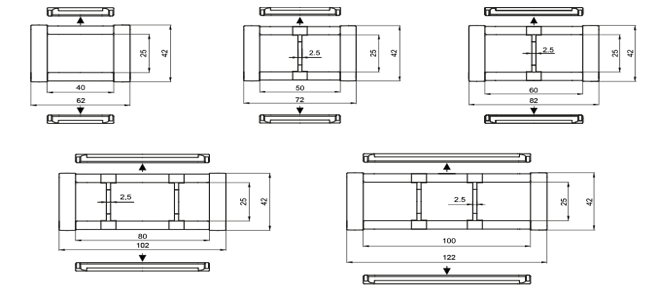

Chain Cross Section

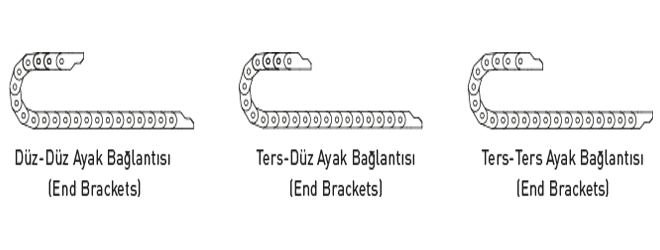

Driver Coonections

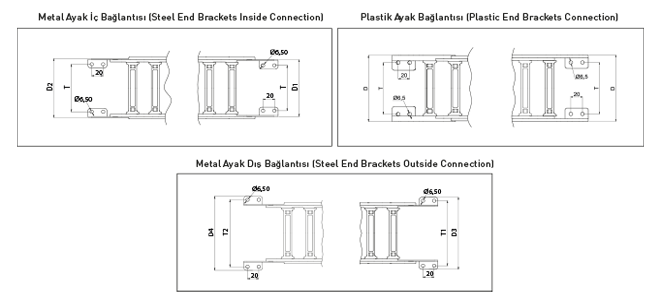

Plastic End Brackets Connection
| CODE | T | T1 | T2 | T3 | T4 | D | D1 | D2 | D3 | D4 |
| CK25 A 040 | 32 | 63 | 75 | 25 | 34 | 60 | 50 | 56 | 80 | 89 |
| CK25 A 050 | 42 | 73 | 85 | 35 | 44 | 70 | 60 | 66 | 90 | 99 |
| CK25 A 060 | 52 | 83 | 95 | 45 | 54 | 80 | 70 | 76 | 100 | 109 |
| CK25 A 080 | 72 | 103 | 115 | 65 | 74 | 100 | 90 | 96 | 120 | 129 |
| CK25 A 100 | 92 | 123 | 135 | 85 | 94 | 120 | 110 | 116 | 140 | 149 |
Assembly / Disassembly
