Special Cable Gland

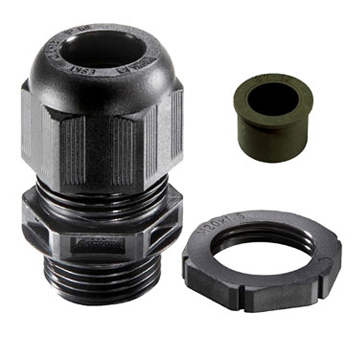

Plastic series are separeted from other cable glands due to the following characteristics:-

• - Polyamide raw material
• - High heat and impact resistance
• - Anti lock system provides superior antivibration protection
• - TPV rubber seal
• - Resistance to Ultraviolet rays
• - Ensures a firm grip on the cable that each point equal to 360°
• - Connection thread norm (EN 60423)
• - Slippery surface for easy cable access
• - Continuous heat resistance -30 °C +80 °C
• - Short term temperature range +150 °C
• - Halogen free (not contain poisonous gas)
• - According to EN 50262

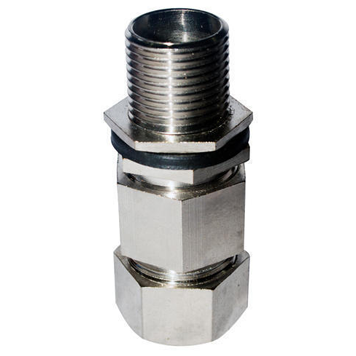

Metal series are separeted from other cable glands due to the following characteristics:-

• - Brass, nickel plated
• - High heat and impact resistance
• - TPV rubber seal
• - Ensures a firm grip on the cable that each point equal to 360°
• - Connection thread norm (EN 60423 / DIN 40430)
• - IP68 protection class
• - Permanent heat resistance -40 °C +100 °C
• - Halogen free (not contain poisonous gas)
• - Nitrile butaidene rubber (NBR 0-ring)

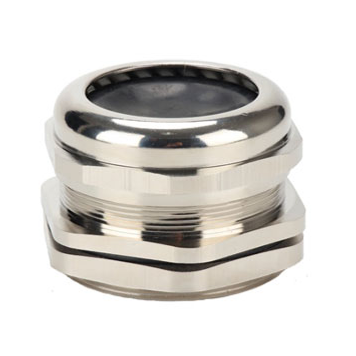

Special size metal series are separeted from other cable glands due to the following characteristics:-

• - Brass, nickel plated
• - High heat and impact resistance
• - EPDM (Ethylene Propylene Diene Monomer) rubber seal
• - Ensures a firm grip on the cable that each point equal to 360°
• - Connection thread norm (EN 60423)
• - IP68 protection class
• - Permanent heat resistance -40 °C +140 °C
• - Halogen free (not contain poisonous gas)
• - Nitrile butaidene rubber (NBR O-ring)
