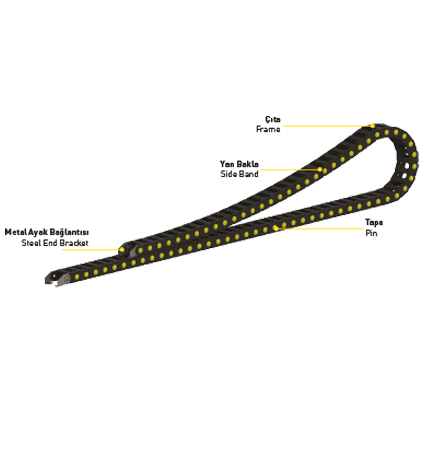

CK 60 S Sliding Plastic Cable Drag Chain
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
3 m/sec
Operating Temperature
-30 °C -+ 130°C

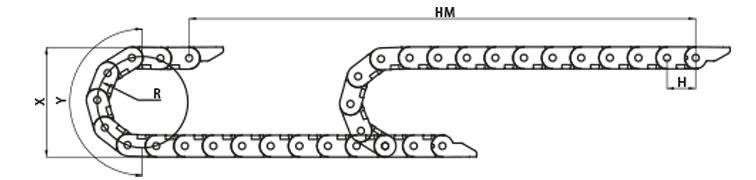

| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK60 S 080 R | 91 | 80 | 82 | 112 | 2,98 |
| CK60 S 100 R | 100 | 132 | 3,11 | ||
| CK60 S 120 R | 120 | 152 | 3,24 | ||
| CK60 S 140 R | 140 | 172 | 3,37 | ||
| CK60 S 160 R | 160 | 192 | 3,50 | ||
| CK60 S 180 R | 180 | 212 | 3,63 | ||
| CK60 S 200 R | 200 | 232 | 3,76 |
| R Bending Radius | 200 |
| H (mm) | 72 |
| X (mm) | 462 |
| Y (mm) | 628 |
| R Bending Radius | 200 |
| H (mm) | 72 |
| X (mm) | 462 |
| Y (mm) | 628 |

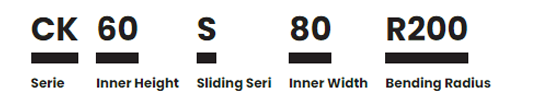

Order

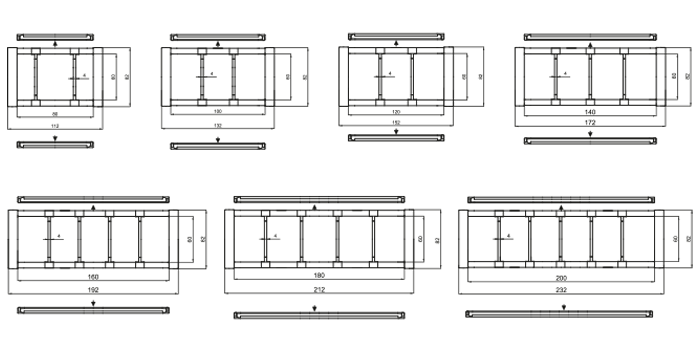

Chain Cross Section

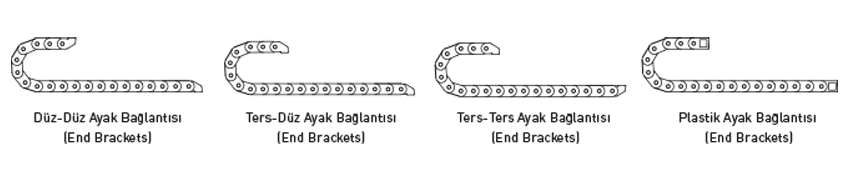

Driver Conections

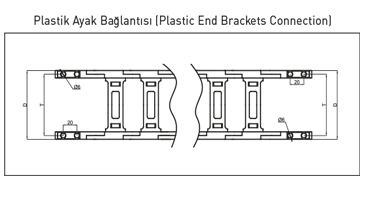

Plastic End Brackets Connection

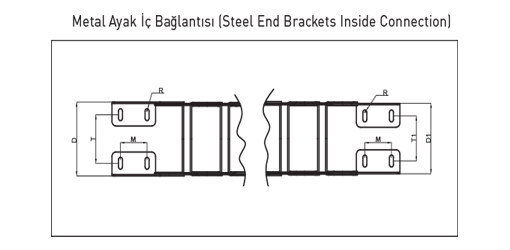

Steel End Brackets Inside Connection

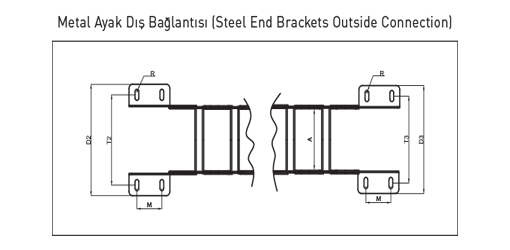

Steel End Brackets Outside Connection
| CODE | T | T1 | T2 | T3 | D | D1 | D2 | D3 | D4 |
| CK60 P 080 | 96 | 72 | 120 | 126 | 110 | 102 | 96 | 144 | 150 |
| CK60 P 100 | 116 | 92 | 140 | 146 | 130 | 122 | 116 | 164 | 170 |
| CK60 P 120 | 136 | 112 | 160 | 166 | 150 | 142 | 136 | 184 | 190 |
| CK60 P 140 | 156 | 132 | 180 | 186 | 170 | 162 | 156 | 204 | 210 |
| CK60 P 160 | 176 | 152 | 200 | 206 | 190 | 182 | 176 | 224 | 230 |
| CK60 P 180 | 196 | 172 | 220 | 226 | 210 | 202 | 196 | 244 | 250 |
| CK60 P 200 | 216 | 192 | 240 | 246 | 230 | 222 | 216 | 264 | 270 |
Seperator
| T TYPE | LENGHT |
| CK YSP 060 | 60 mm |
| CK YSP 080 | 80 mm |
| CK YSP 100 | 100 mm |

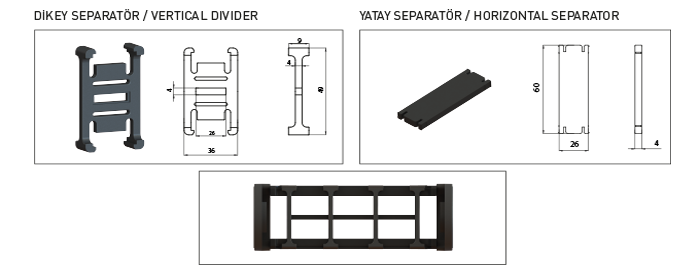

Seperator
Use the Divider
You can separate the cable and hose from each other by using vertical and horizontal divider.

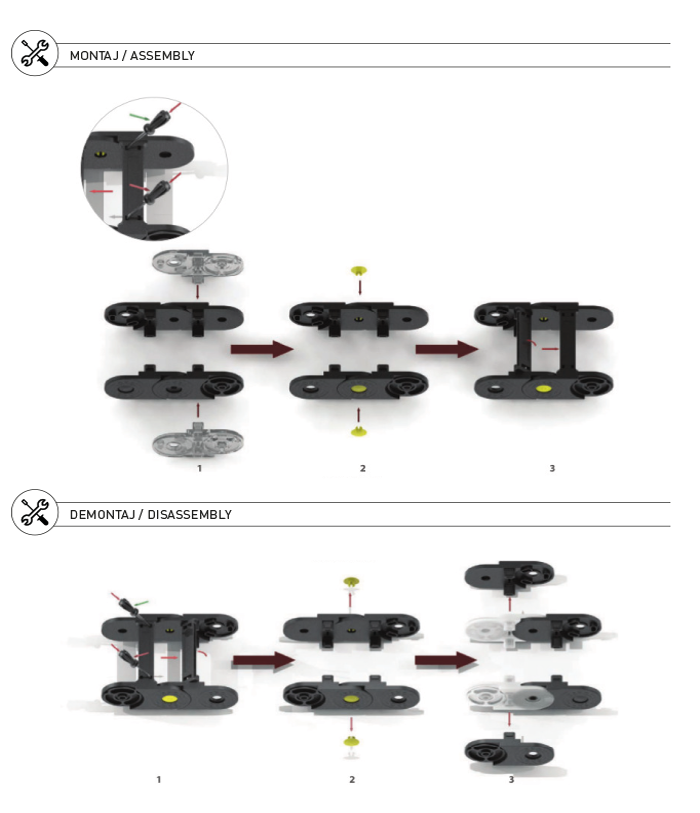

Assembly / Disassembly
