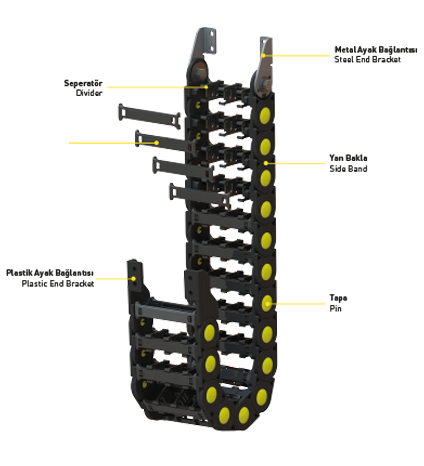

Plastic Medium Series CK30 AC?K
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
9 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK30 A 040 R | 30 | 40 | 47 | 62 | 1,36 |
| CK30 A 050 R | 50 | 72 | 1,46 | ||
| CK30 A 060 R | 60 | 82 | 1,56 | ||
| CK30 A 080 R | 80 | 102 | 1,74 | ||
| CK30 A 100 R | 100 | 122 | 1,84 |
| R Bending Radius | 50 | 75 | 100 | 150 |
| H (mm) | 52 | 52 | 52 | 52 |
| X (mm) | 147 | 197 | 247 | 347 |
| Y (mm) | 157 | 236 | 314 | 471 |

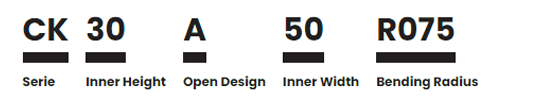

Order

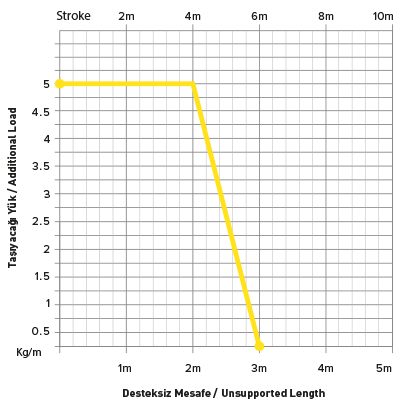

Load Diagram

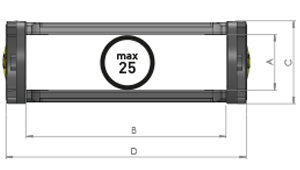

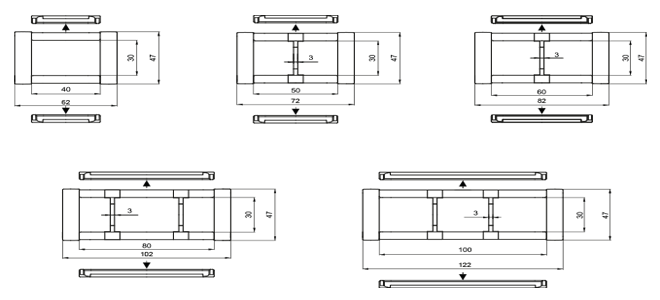

Chain Cross Section

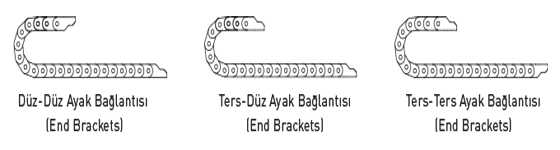

Driver Coonections

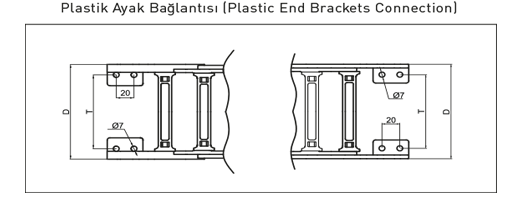

Plastic End Brackets Connection

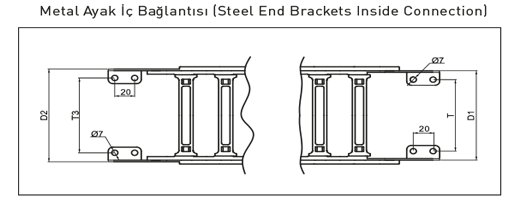

Steel End Brackets Inside Connection

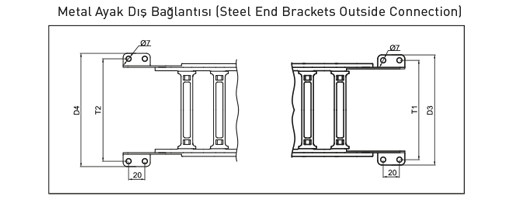

Steel End Brackets Outside Connection
| CODE | T | T1 | T2 | D | D1 | D2 | D3 | D4 |
| CK30 P 040 | 22 | 53 | 65 | 61 | 51 | 57 | 81 | 90 |
| CK30 P 050 | 32 | 63 | 75 | 71 | 61 | 67 | 91 | 100 |
| CK30 P 060 | 42 | 73 | 85 | 81 | 71 | 77 | 101 | 110 |
| CK30 P 080 | 62 | 93 | 105 | 101 | 91 | 97 | 121 | 130 |
| CK30 P 100 | 82 | 113 | 125 | 121 | 111 | 117 | 141 | 150 |
Seperator
| T TYPE | LENGHT |
| CK YSP 060 | 60 mm |
| CK YSP 080 | 80 mm |
| CK YSP 100 | 100 mm |
Use the Divider
You can separate the cable and hose from each other by using vertical and horizontal divider.
Assembly / Disassembly
