CK 35 Y Plastic Cable Drag Chain
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
9 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK35 Y 040 R | 35 | 40 | 52 | 64 | 1,56 |
| CK35 Y 060 R | 60 | 84 | 1,66 | ||
| CK35 Y 080 R | 80 | 104 | 1,76 | ||
| CK35 Y 100 R | 100 | 124 | 1,9 | ||
| CK35 Y 125 R | 125 | 149 | 2,1 |
Note:R75 radius is only for 40-60-80 covered frame.
| R Bending Radius | 75 | 100 | 150 |
| H (mm) | 52 | 52 | 52 |
| X (mm) | 202 | 252 | 352 |
| Y (mm) | 236 | 314 | 471 |

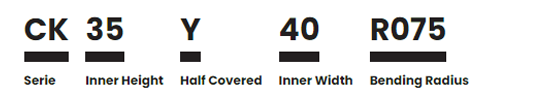

Order
Load Diagram
Chain Cross Section
Driver Coonections
Plastic End Brackets Connection
Steel End Brackets Inside Connection
Steel End Brackets Outside Connection
| CODE | T | T1 | T2 | D | D1 | D2 | D3 | D4 |
| CK35 P 040 | 32 | 63 | 75 | 60 | 50 | 56 | 80 | 89 |
| CK35 P 060 | 52 | 83 | 95 | 80 | 70 | 76 | 100 | 109 |
| CK35 P 080 | 72 | 103 | 115 | 100 | 90 | 96 | 120 | 129 |
| CK35 P 100 | 92 | 123 | 135 | 120 | 110 | 116 | 140 | 149 |
| CK35 P 125 | 117 | 148 | 160 | 145 | 135 | 141 | 165 | 174 |
Seperator
| T TYPE | LENGHT |
| CK YSP 060 | 60 mm |
| CK YSP 080 | 80 mm |
| CK YSP 100 | 100 mm |
Use the Divider
You can separate the cable and hose from each other by using vertical and horizontal divider.
Assembly / Disassembly
