CK 40 K Plastic Cable Drag Chain
Material Properties
PA6 with 3%0 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
6 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |

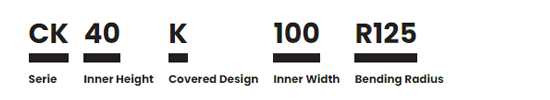

| CK40 K 100 R | 40 | 100 | 62 | 128 | 3,24 |
| R Bending Radius | 125 | 150 | 200 | 250 | 300 |
| H (mm) | 72 | 72 | 72 | 72 | 72 |
| X (mm) | 312 | 362 | 462 | 562 | 662 |
| Y (mm) | 392 | 471 | 628 | 785 | 942 |
Order

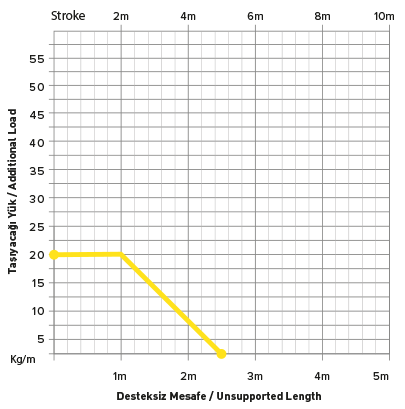

Load Diagram
Chain Cross Section
Driver Coonections
Plastic End Brackets Connection
Steel End Brackets Inside Connection
Steel End Brackets Outside Connection
| KOD | T | T1 | T2 | T3 | D | D1 | D2 | D3 | D4 |
| CK40 P 100 | 114 | 85 | 145 | 160 | 128 | 124 | 114 | 170 | 185 |
Seperator
| T TYPE | LENGHT |
| CK YSP 060 | 60 mm |
| CK YSP 080 | 80 mm |
| CK YSP 100 | 100 mm |
Use the Divider
You can separate the cable and hose from each other by using vertical and horizontal divider.
