Plastic Heavy Series CK40 AC?K

KNOW MORE ABOUT THIS PRODUCT

CK 40 A Plastic Cable Drag Chain

Material Properties

PA6 with %30 fiber glass

Application Areas

Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine

Speed

6 m/sec

Operating Temperature

-30 °C -+ 130°C

L	Calculation of the chain length
HM	Movement Distance
Y	Radius Distance
X	Mounting Height
H	Pitch

	A	B	C	D	W
MODEL	Inner Height (mm)	Inner Width (mm)	Outer Height (mm)	Outer Width (mm)	Weight Kg/Mt
CK40 A 080 R	40	80	62	108	2,85
CK40 A 100 R		100		128	2,99
CK40 A 120 R		120		148	3,11
CK40 A 140 R		140		168	3,24
CK40 A 160 R		160		188	3,37
CK40 A 180 R		180		208	3,50
CK40 A 200 R		200		228	3,63

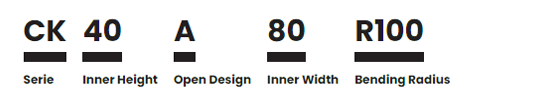

Order

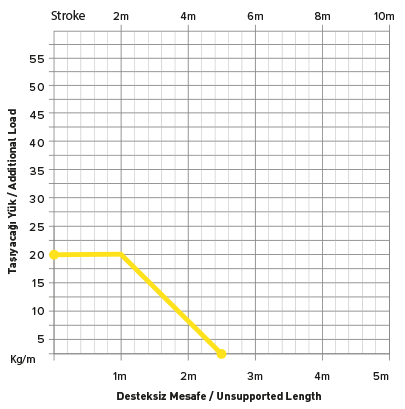

Load Diagram

Chain Cross Section

Driver Coonections

Plastic End Brackets Connection

Steel End Brackets Inside Connection

Steel End Brackets Outside Connection

KOD	T	T1	T2	T3	D	D1	D2	D3	D4
CK40 P 080	94	65	125	140	108	104	94	150	165
CK40 P 100	114	85	145	160	128	124	114	170	185
CK40 P 120	134	105	165	180	148	144	134	190	205
CK40 P 140	154	125	185	200	168	164	154	210	225
CK40 P 160	174	145	205	220	188	184	174	230	245
CK40 P 180	194	165	225	240	208	204	194	250	265
CK40 P 200	214	185	245	230	228	224	214	270	285

Seperator

T TYPE	LENGHT
CK YSP 060	60 mm
CK YSP 080	80 mm
CK YSP 100	100 mm

Use the Divider

You can separate the cable and hose from each other by using vertical and horizontal divider.

Assembly / Disassembly
