CK 42 Y Plastic Cable Drag Chain
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
9 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK42 Y 050 R | 42 | 50 | 58 | 77 | 1,90 |
| CK42 Y 080 R | 80 | 107 | 2,10 | ||
| CK42 Y 100 R | 100 | 127 | 2,30 | ||
| CK42 Y 125 R | 125 | 152 | 2,45 |
| R Bending Radius | 100 | 150 | 200 |
| H (mm) | 62 | 62 | 62 |
| X (mm) | 258 | 358 | 458 |
| Y (mm) | 314 | 471 | 628 |

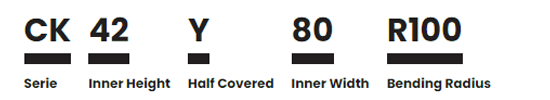

Order
Load Diagram
Chain Cross Section
Driver Coonections
Plastic End Brackets Connection
Steel End Brackets Inside Connection
Steel End Brackets Outside Connection
| KOD | T | T1 | T2 | D | D1 | D2 | D3 | D4 |
| CK42 P 050 | 40 | 63 | 77 | 75 | 61 | 69 | 91 | 102 |
| CK42 P 080 | 70 | 93 | 107 | 105 | 91 | 99 | 121 | 132 |
| CK42 P 100 | 90 | 113 | 127 | 125 | 111 | 119 | 141 | 152 |
| CK42 P 125 | 115 | 138 | 152 | 150 | 136 | 144 | 166 | 177 |
Seperator
| T TYPE | LENGHT |
| CK YSP 060 | 60 mm |
| CK YSP 080 | 80 mm |
| CK YSP 100 | 100 mm |
Use the Divider
You can separate the cable and hose from each other by using vertical and horizontal divider.
Assembly / Disassembly
