Plastic Heavy Series CK80 AC?K

KNOW MORE ABOUT THIS PRODUCT

CK 80 A Plastic Cable Drag Chain

Material Properties

PA6 with 3%0 fiber glass

Application Areas

Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine

Speed

6 m/sec

Operating Temperature

-30 °C -+ 130°C

L	Calculation of the chain length
HM	Movement Distance
Y	Radius Distance
X	Mounting Height
H	Pitch

	A	B	C	D	W
MODEL	Inner Height (mm)	Inner Width (mm)	Outer Height (mm)	Outer Width (mm)	Weight Kg/Mt
CK80 A 080 R	80	80	102	112	3,10
CK80 A 100 R		100		132	3,23
CK80 A 120 R		120		152	3,36
CK80 A 140 R		140		172	3,49
CK80 A 160 R		160		192	3,62
CK80 A 180 R		180		212	3,75
CK80 A 200 R		200		232	3,88

R Bending Radius	150	200	250	300
H (mm)	110	110	110	110
X (mm)	402	502	602	702
Y (mm)	471	628	785	942

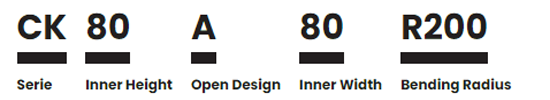

Order

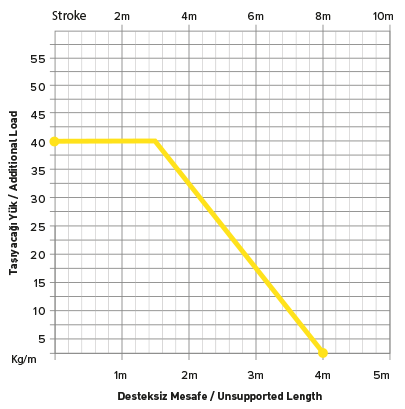

Load Diagram

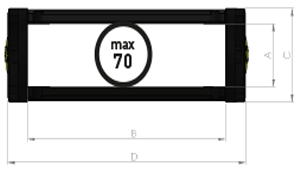

Chain Cross Section

Driver Coonections

Plastic End Brackets Connection

Steel End Brackets Inside Connection

Steel End Brackets Outside Connection

CODE	T1	T2	T3	D1	D2	D3	D4
CK80 P 080	60	140	163	108	98	166	188
CK80 P 100	80	160	183	128	118	186	208
CK80 P 120	100	180	203	148	138	206	228
CK80 P 140	120	200	223	168	158	226	248
CK80 P 160	140	220	243	188	178	246	268
CK80 P 180	160	240	263	208	198	266	288
CK80 P 200	180	260	283	228	218	286	308

Seperator

T TYPE	LENGHT
CK YSP 060	60 mm
CK YSP 080	80 mm
CK YSP 100	100 mm

Use the Divider

You can separate the cable and hose from each other by using vertical and horizontal divider.

Assembly / Disassembly

Unit- I
